PNETLab 프레임워크 분석

# brctl show
                                STP
bridge name  bridge id          enabled  interfaces
docker0      8000.0242730dda4d  no
pnet0        8000.566f4bf80108  no       eth0
pnet1        8000.000000000000  no
pnet2        8000.000000000000  no
pnet3        8000.000000000000  no
pnet4        8000.000000000000  no
pnet5        8000.000000000000  no
pnet6        8000.000000000000  no
pnet7        8000.000000000000  no
pnet8        8000.000000000000  no
pnet9        8000.000000000000  no
pnet_nat     8000.000000000000  no

# brctl show
                                STP
bridge name  bridge id          enabled  interfaces
docker0      8000.0242730dda4d  no
pnet0        8000.566f4bf80108  no       eth0
pnet1        8000.000000000000  no
...
pnet_nat     8000.000000000000  no
vnet1_1      8000.5e89b0f3aaca  no       vunl11_35
                                         vunl12_35
vnet1_10     8000.be1960846bc5  no       vunl11_50
                                         vunl13_50
vnet1_11     8000.9e3475a9c50e  no       vunl12_34
                                         vunl14_34
vnet1_12     8000.226a4f0e634b  no       vunl12_50
                                         vunl14_50
vnet1_13     8000.125d89294c8e  no       vunl10_16
                                         vunl11_0
                                         vunl1_16
                                         vunl2_16
                                         vunl3_16
                                         vunl4_16
                                         vunl5_16
                                         vunl6_16
...

# brctl show
bridge name  bridge id          STP enabled  interfaces
vnet1_1      8000.264711a044df  no           vunl1_0
                                             vunl2_0

# tc qdisc show
qdisc netem 8003: dev vunl1_0 root refcnt 2 limit 1000 delay 5.0ms  1.0ms loss 0.5% rate 10240Kbit
qdisc netem 8004: dev vunl2_0 root refcnt 2 limit 1000 delay 6.0ms  2.0ms loss 0.6% rate 20480Kbit

# ps auxf | grep -v '\[' | awk '{ print substr($0, 1, 9) substr($0, 65) }'
USER      COMMAND
root      /sbin/init
root      /lib/systemd/systemd-journald
root      /sbin/lvmetad -f
root      /lib/systemd/systemd-udevd
systemd+  /lib/systemd/systemd-timesyncd
systemd+  /lib/systemd/systemd-networkd
systemd+  /lib/systemd/systemd-resolved
root      /usr/sbin/irqbalance --foreground
root      /usr/lib/accountsservice/accounts-daemon
message+  /usr/bin/dbus-daemon --system --address=systemd: --nofork --nopidfile --systemd-activation --syslog-only
root      /lib/systemd/systemd-logind
root      php /opt/unetlab/scripts/cpulimit_daemon.php > /opt/unetlab/data/Logs/cpulimit.log 2>&1
root      /usr/bin/python3 /usr/bin/networkd-dispatcher --run-startup-triggers
daemon    /usr/sbin/atd -f
root      /usr/bin/lxcfs /var/lib/lxcfs/
root      /usr/lib/policykit-1/polkitd --no-debug
root      ovsdb-server /etc/openvswitch/conf.db
              -vconsole:emer
              -vsyslog:err
              -vfile:info
              --remote=punix:/var/run/openvswitch/db.sock
              --private-key=db:Open_vSwitch,SSL,private_key
              --certificate=db:Open_vSwitch,SSL,certificate
              --bootstrap-ca-cert=db:Open_vSwitch,SSL,ca_cert
              --no-chdir
              --log-file=/var/log/openvswitch/ovsdb-server.log
              --pidfile=/var/run/openvswitch/ovsdb-server.pid
              --detach
root      ovs-vswitchd unix:/var/run/openvswitch/db.sock
              -vconsole:emer
              -vsyslog:err
              -vfile:info
              --mlockall
              --no-chdir
              --log-file=/var/log/openvswitch/ovs-vswitchd.log
              --pidfile=/var/run/openvswitch/ovs-vswitchd.pid
              --detach
root      /usr/bin/python3 /usr/share/unattended-upgrades/unattended-upgrade-shutdown --wait-for-signal
root      /bin/bash /opt/unetlab/html/store/app/Console/Commands/harddisk_alert
root       \_ sleep 90
root      /usr/local/sbin/guacd -p /var/run/guacd.pid
root      /usr/bin/containerd
root      /usr/sbin/qemu-ga --daemonize -m virtio-serial -p /dev/virtio-ports/org.qemu.guest_agent.0
root      /usr/bin/ovs-testcontroller
              --detach
              --pidfile=/var/run/openvswitch/ovs-testcontroller.pid pssl:
              --private-key=/etc/openvswitch-testcontroller/privkey.pem
              --certificate=/etc/openvswitch-testcontroller/cert.pem
              --ca-cert=/etc/openvswitch-testcontroller/cacert.pem
root      /sbin/agetty -o -p -- \u --noclear tty1 linux
tomcat8   /usr/lib/jvm/default-java/bin/java
              -Djava.util.logging.config.file=/var/lib/tomcat8/conf/logging.properties
              -Djava.util.logging.manager=org.apache.juli.ClassLoaderLogManager
              -Djava.awt.headless=true
              -XX:+UseConcMarkSweepGC
              -Djdk.tls.ephemeralDHKeySize=2048
              -Djava.protocol.handler.pkgs=org.apache.catalina.webresources
              -Dorg.apache.catalina.security.SecurityListener.UMASK=0027
              -Dignore.endorsed.dirs=
              -classpath /usr/share/tomcat8/bin/bootstrap.jar:/usr/share/tomcat8/bin/tomcat-juli.jar
              -Dcatalina.base=/var/lib/tomcat8
              -Dcatalina.home=/usr/share/tomcat8
              -Djava.io.tmpdir=/tmp/tomcat8-tomcat8-tmp org.apache.catalina.startup.Bootstrap start
uml-net   /usr/bin/uml_switch -unix /var/run/uml-utilities/uml_switch.ctl
root      /usr/sbin/apache2 -k start
www-data   \_ /usr/sbin/apache2 -k start
www-data   \_ /usr/sbin/apache2 -k start
root      /bin/bash /opt/unetlab/html/store/app/Console/Commands/harddisk_limit
root       \_ sleep 60
root      /bin/bash /opt/unetlab/html/store/app/Console/Commands/process_limit
root       \_ sleep 30
root      /lib/systemd/systemd --user
root       \_ (sd-pam)
syslog    /usr/sbin/rsyslogd -n
root      /usr/sbin/cron -f
root       \_ /usr/sbin/CRON -f
root           \_ /bin/sh -c /usr/bin/php /opt/unetlab/html/store/artisan keepalive 2>&1
root               \_ /usr/bin/php /opt/unetlab/html/store/artisan keepalive
mysql     /usr/sbin/mysqld --daemonize --pid-file=/run/mysqld/mysqld.pid

# ps auxf | grep -v '\[' | awk '{ print substr($0, 1, 9) substr($0, 65) }'
USER      COMMAND
unl1      /opt/unetlab/wrappers/iol_wrapper -D 1 -S 1 -P 30001 -t R1
                  -F /opt/unetlab/tmp/1/1/i86bi_linux-adventerprisek9-ms.154-1.T_AntiGNS3.bin
                  -d 0 -e 1 -s 0 -- -n 1024 -q -m 512 -c startup-config
unl1       \_ /opt/unetlab/wrappers/iol_wrapper ...
unl1           \_ sh -c LD_LIBRARY_PATH=/opt/unetlab/addons/iol/lib
                          /opt/...GNS3.bin
                          -e 1 -s 0 -n 1024 -q -m 512 -c startup-config 1
unl1               \_ /opt/...GNS3.bin ...

telnet pnet.kreonet.net 30001

# ps auxf | grep -v '\[' | awk '{ print substr($0, 1, 9) substr($0, 65) }'
USER      COMMAND
root      /opt/vpcsu/bin/vpcs -m 15 -N VPC -i 1 -p 30015 -e -d vunl15_0
root       \_ /opt/vpcsu/bin/vpcs -m 15 -N VPC -i 1 -p 30015 -e -d vunl15_0

# /opt/vpcsu/bin/vpcs -v
Welcome to Virtual PC Simulator, version 1.0 (0.8c)
Dedicated to Daling.
Build time: Dec 31 2016 01:22:17
Copyright (c) 2007-2015, Paul Meng (mirnshi@gmail.com)
All rights reserved.

# docker ps -a
CONTAINER ID   IMAGE                          COMMAND            CREATED          STATUS          PORTS              NAMES
e671d651bc36   pnetlab/linux-desktop:latest   "/start.sh bash"   23 minutes ago   Up 23 minutes   80/tcp, 3389/tcp   docker16

root@pnetlab:~# ps auxf | grep -v '\[' | awk '{ print substr($0, 1, 9) substr($0, 65) }'
USER      COMMAND
root      /usr/bin/containerd-shim-runc-v2 -namespace moby -id e671d651bc36 -address /run/containerd/containerd.sock
root       \_ bash
root       |   \_ xrdp
root       |   \_ xrdp-sesman
root       \_ /bin/bash
root      sudo /opt/unetlab/wrappers/docker_wrapper -P 30016 -t Docker -p 16 -c /bin/bash
root       \_ ...
root           \_ ...
root               \_ sh -c ssh root@localhost -i /root/.ssh/id_rsa_dy -o StrictHostKeyChecking=no
                              -tt 'export TERM=ansi&&docker -H=tcp://127.0.0.1:4243 exec -ti docker16 /bin/bash'
root                   \_ ...

# ps auxf | grep -v '\[' | awk '{ print substr($0, 1, 15) substr($0, 65) }'
USER       PID  COMMAND
root     12974  /opt/qemu-2.12.0/bin/qemu-system-x86_64
                        -device virtio-net-pci,netdev=net0,mac=50:4c:ef:00:11:00
                        -netdev tap,id=net0,ifname=vunl17_0,script=no
                        -vnc :24117
                        -chardev socket,id=monitor,path=/opt/unetlab/tmp/1/17/monitor.sock,server,nowait
                        -monitor chardev:monitor
                        -smp 2
                        -m 4096
                        -name Linux
                        -uuid 5b2e66a0-df69-43d0-b36f-c6a1362d289d
                        -drive file=virtioa.qcow2,if=virtio,bus=0,unit=0,cache=none
                        -machine type=pc,accel=kvm
                        -vga virtio
                        -usbdevice tablet
                        -boot order=cd

# netstat -anp | grep 12974
tcp    0    0 0.0.0.0:30017    0.0.0.0:*    LISTEN    12974/qemu-system-x

# ls -al /proc/12974/cwd
/proc/12974/cwd -> /opt/unetlab/tmp/1/17

# ls -al /opt/unetlab/tmp/1/17

# man qemu-system-x86_64
-vnc display
     host:d
        TCP connections will only be allowed from host on display d.
        By convention the TCP port is 5900+ d. Optionally, host can be omitted
        in which case the server will accept connections from any host.

/opt/unetlab/tmp
└── 1
    ├── 1
    │   ├── iourc -> /opt/unetlab/addons/iol/bin/iourc
    │   ├── keepalive.pl -> /opt/unetlab/addons/iol/bin/keepalive.pl
    │   ├── L2-ADVENTERPRISEK9-M-15.2-IRON-20151103.bin -> /opt/unetlab/addons/iol/bin/L2-ADVENTERPRISEK9-M-15.2-IRON-20151103.bin
    │   ├── NETMAP
    │   ├── nvram_00001
    │   └── wrapper.txt
    ├── 21
    │   └── wrapper.txt
    ├── 31
    │   └── wrapper.txt
    └── 41
        ├── monitor.sock
        ├── virtioa.qcow2
        └── wrapper.txt

# ls -1 /opt/unetlab/wrappers/
docker_wrapper
dynamips_wrapper
iol_wrapper
iol_wrapper_telnet
nsenter
qemu_wrapper
qemu_wrapper_telnet
simple_forwarder
unl_profile
unl_wrapper

# cd /opt/unetlab/html/devices/
# grep -Hrn _wrapper *
docker/device_docker.php:339:  $cmd = 'sudo /opt/unetlab/wrappers/docker_wrapper -P ' ...
iol/device_iol.php:106:        $cmd = '/opt/unetlab/wrappers/iol_wrapper ';
qemu/device_qemu.php:597:      $cmd = '/opt/unetlab/wrappers/qemu_wrapper_telnet -P ' ...
qemu/device_qemu_wp.php:338:   $cmd = '/opt/unetlab/wrappers/qemu_wrapper -T ' ...

<?php if(!extension_loaded('ionCube Loader'))... ?>
HR+cPwf3lkYwI0JFGrKgosEcR4IkYG9YmAJdBR+uMqvuG8fMuSMGbT47RAyjVFsriJV3hnBfI4Gs

# grep -Hrn extension_loaded..ionCube /opt/unetlab/html | wc -l
195

# mysql -u pnetlab -p pnetlab_db
Enter password: pnetlab

Welcome to the MySQL monitor.  Commands end with ; or \g.
Your MySQL connection id is 7019
Server version: 5.7.42-0ubuntu0.18.04.1 (Ubuntu)

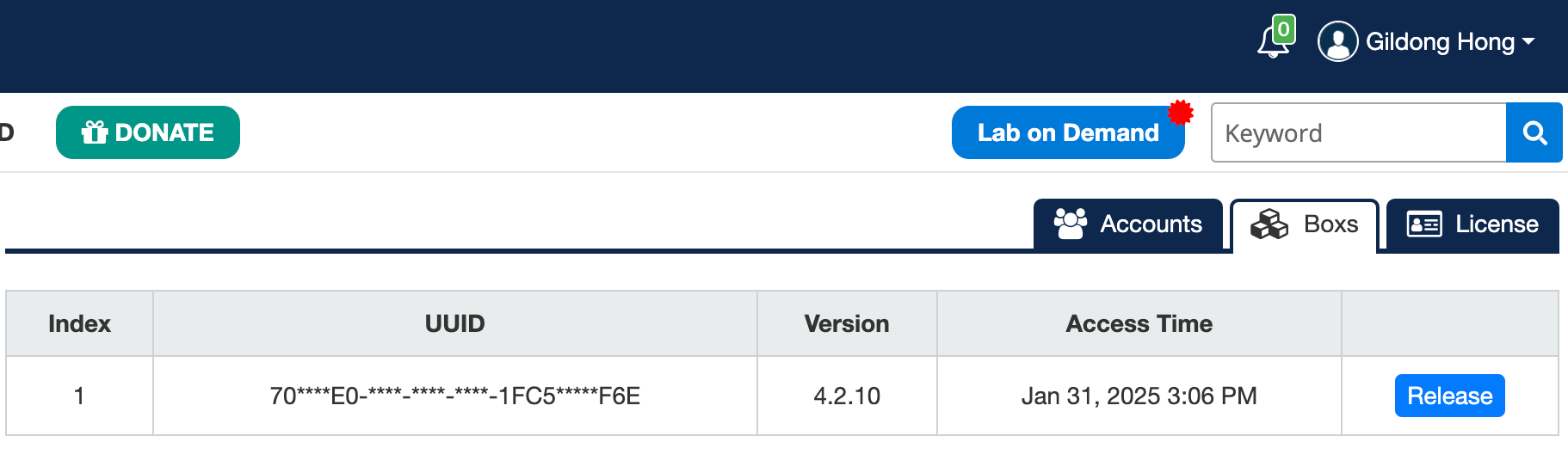

mysql> select * from control;
+-------------------+---------------+
| control_name      | control_value |
+-------------------+---------------+
| ctrl_alive_key    | QjZxcn...     |
| ctrl_default_mode | online        |
| ctrl_offline_mode | 1             |
| ctrl_online_mode  | 1             |
| ctrl_version      | 4.2.10        |
+-------------------+---------------+

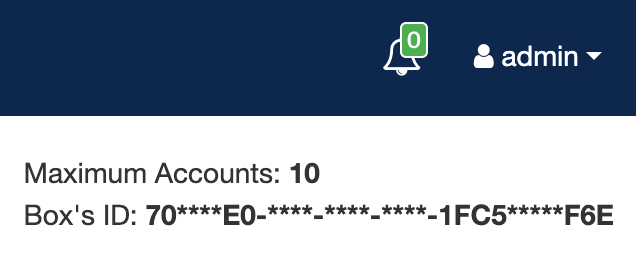

mysql> SELECT * FROM users;
+-----+-------------------------+---------+-------------+------------+----------+---------+----------+------+-------------------------------+-------------+-------+---------+-------------+------+---------+-------------+
| pod | username                | cookie  | email       | expiration | password | session | ip       | role | folder                        | lab_session | html5 | license | online_time | note | offline | user_status |
+-----+-------------------------+---------+-------------+------------+----------+---------+----------+------+-------------------------------+-------------+-------+---------+-------------+------+---------+-------------+
|   1 | John Doe_online_account | 89..... | john@ex.com |         -1 | ........ | ....... | 10.0.0.5 | 0    | /Your labs from PNETLab Store |        NULL |     1 | Um..... |  1723433643 | NULL |       0 |           1 |
|   2 | admin                   | NULL    | NULL        |         -1 | ........ |       N | NULL     | 0    | NULL                          |        NULL |  NULL | NULL    |  1723433636 | NULL |       1 |           1 |
+-----+-------------------------+---------+-------------+------------+----------+---------+----------+------+-------------------------------+-------------+-------+---------+-------------+------+---------+-------------+
