Host ( 100G perfSONAR + VM Host )
| Vendor | Supermicro |
|
|---|
| Model | 6028r |
|
|---|
| CPU | Intel Xeon E5-2643 v4 @ 3.40GHz | 6C 12T x 2ea |
|---|
| MEM | DDR4 128GB |
|
|---|
| NIC1 | Intel 10GbE dual port |
|
|---|
| NIC2 | Mellanox ConnectX-5 100GbE single port |
|
|---|
| Hostname | ps-amst.kreonet2.net |
|
|---|
| OS | CentOS 7.9.2009 |
|
|---|
| perfSONAR | 4.4.4-1.el7 |
|
|---|
VM Guest ( 10G perfSONAR )
| CPU | host-passthrough | vCPU : 4C |
|---|
| MEM | DDR4 16GB |
|
|---|
| NIC1 | pci-passthrogh | Intel 10GbE single port |
|---|
| Hostname | ps-amst-v1.kreonet2.net |
|
|---|
| OS | CentOS 7.9.2009 |
|
|---|
| perfSONAR | 4.4.4-1.el7 |
|
|---|
Install utils and cockpit-machines
| 코드 블럭 |
|---|
| language | text |
|---|
| linenumbers | true |
|---|
|
# sudo yum -y install tmux tree git zsh sqlite net-tools ipmitool lshw inxi htop hwloc-gui
# sudo yum -y install cockpit cockpit-machines libosinfo qemu-kvm libvirt libvirt-python libguestfs-tools virt-install
# sudo firewall-cmd --add-service=cockpit
# sudo firewall-cmd --add-service=cockpit --permanent
# sudo systemctl enable --now cockpit.socket |
Check Hardware
| 코드 블럭 |
|---|
|

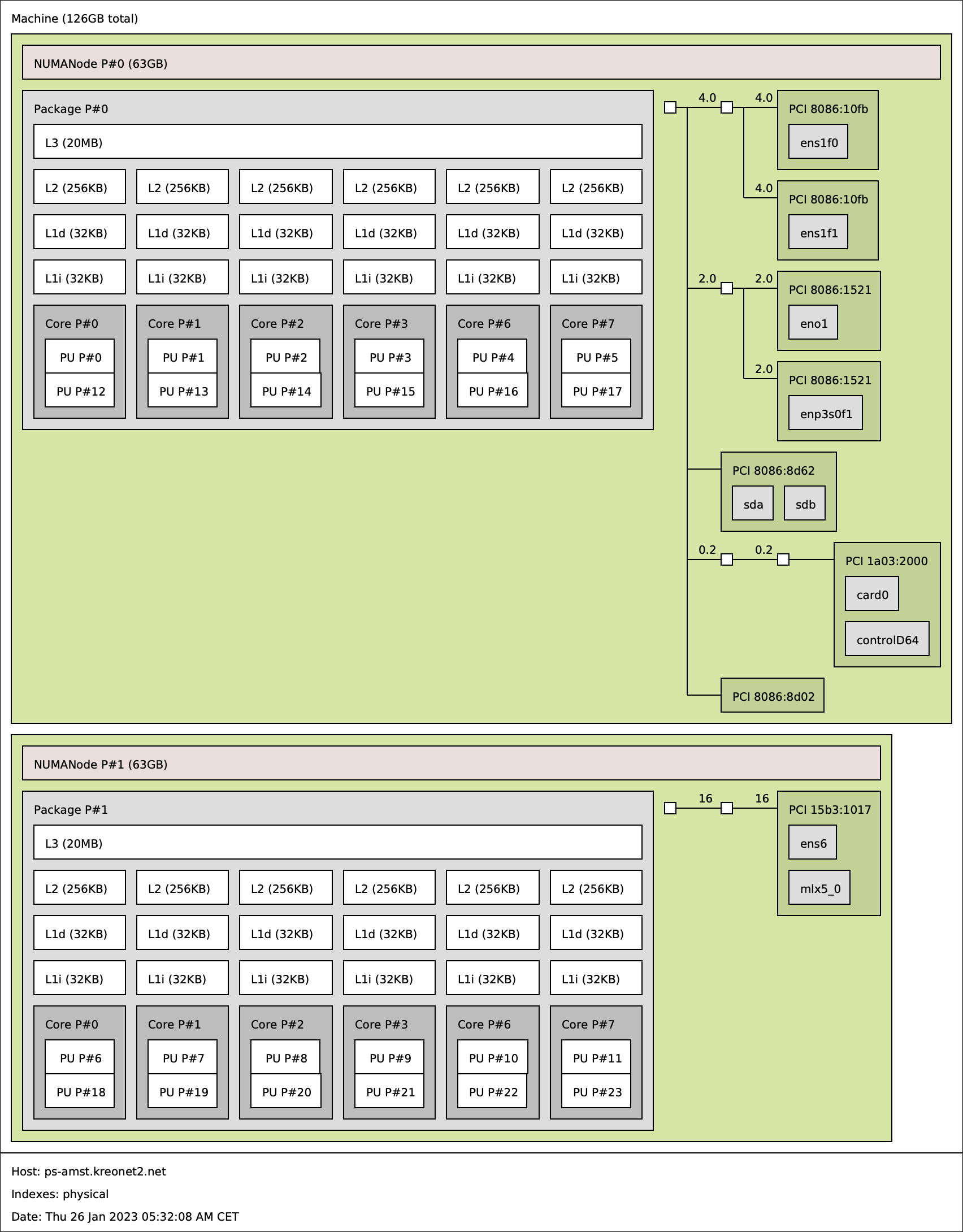

# lstopo --ignore misc hwconfig.png |
| 코드 블럭 |
|---|
| language | text |
|---|
| linenumbers | true |
|---|
|
# sudo lshw -short -c net
H/W path Device Class Description
=======================================================
/0/100/1/0 ens1f0 network 82599ES 10-Gigabit SFI/SFP+ Network Connection
/0/100/1/0.1 ens1f1 network 82599ES 10-Gigabit SFI/SFP+ Network Connection
/0/2/0 ens6 network MT27800 Family [ConnectX-5]
# sudo ls -al /sys/class/net/ens1f0/device/driver
/sys/class/net/ens1f0/device/driver -> ../../../../bus/pci/drivers/ixgbe
# sudo ls -al /sys/bus/pci/drivers/ixgbe
0000:01:00.0 -> ../../../../devices/pci0000:00/0000:00:01.0/0000:01:00.0
0000:01:00.1 -> ../../../../devices/pci0000:00/0000:00:01.0/0000:01:00.1
... |
...
| 코드 블럭 |
|---|
| language | text |
|---|
| title | /etc/systemd/system/sriov-vf.service |
|---|
| linenumbers | true |
|---|
|
[Unit]
Description=Script to enable SR-IOV on boot
[Service]
Type=oneshot
ExecStart=/usr/bin/bash -c 'echo 0000:01:00.0 > /sys/bus/pci/drivers/ixgbe/unbind'
ExecStart=/usr/bin/bash -c 'echo 0000:01:00.1 > /sys/bus/pci/drivers/ixgbe/unbind'
[Install]
WantedBy=multi-user.target |
| 코드 블럭 |
|---|
| language | text |
|---|
| linenumbers | true |
|---|
|
# sudo ifconfig ens1f0 down
# sudo ifconfig ens1f1 down
# sudo systemctl daemon-reload
# sudo systemctl enable sriov-vf.service
# sudo systemctl start sriov-vf.service
# lshw -short -c net
H/W path Device Class Description
=======================================================
/0/100/1/0 network 82599ES 10-Gigabit SFI/SFP+ Network Connection
/0/100/1/0.1 network 82599ES 10-Gigabit SFI/SFP+ Network Connection
/0/2/0 ens6 network MT27800 Family [ConnectX-5] |
...
3. SR-IOV config for Linux Kernel Boot
...
Launch VM
...
| 코드 블럭 |
|---|
| language | text |
|---|
| linenumbers | true |
|---|
|
# scp ps-amst-v1.qcow2 root@HOST:/var/lib/libvirt/images
# scp ps-amst-v1.xml root@HOST:/var/lib/libvirt/images |
| 코드 블럭 |
|---|
| language | text |
|---|
| linenumbers | true |
|---|
|
# sudo virsh define ps-amst-v1.xml
# sudo virsh edit ps-amst-v1
# sudo virsh start ps-amst-v1 |
Etc
Image Added
