해외 데이터센터에 Dell 서버를 설치하기 위한 DC PSU 구매
부품 정보
서버 모델 : Dell R740
해당 서버의 DC Power Supply 부품 번호 : E1100D-S0
Dell R740 Product Compliance Datasheet → Server Power Supply Table 에서 확인
구매 정보
2022.09.15. 네이버쇼핑 최저가 15만원
전화로 국내 재고 확인, 미개봉 신품 확인, 워런티는 지남
구매 수량
시애틀에 3개 핸드캐리
시애틀 현장에서 2개 교체 및 1개 여분은 현장에 spare 로 두기
설치 부자재
AWG10 UL 전선 2m 이내 ( R, B, G/Y )
- UL 전선 규격 : E164571 1015 10AWG ( 참고 https://www.aliexpress.com/item/1005002561014650.html )
- 구매처 : https://www.kcmart.co.kr/goods/goods_view.php?goodsNo=1000015787

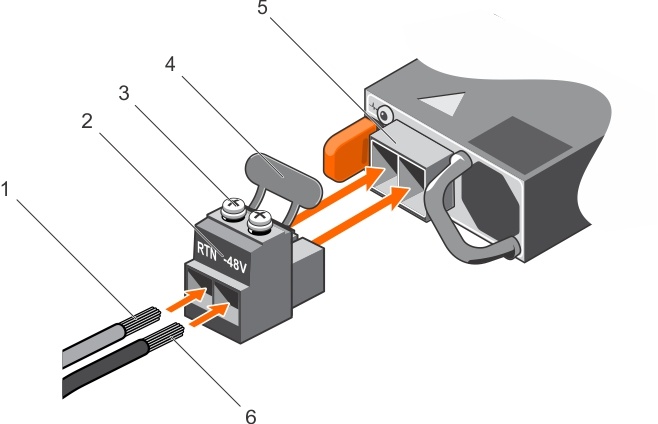

Dell DC PSU 커넥터 규격 : Molex 39421-0002

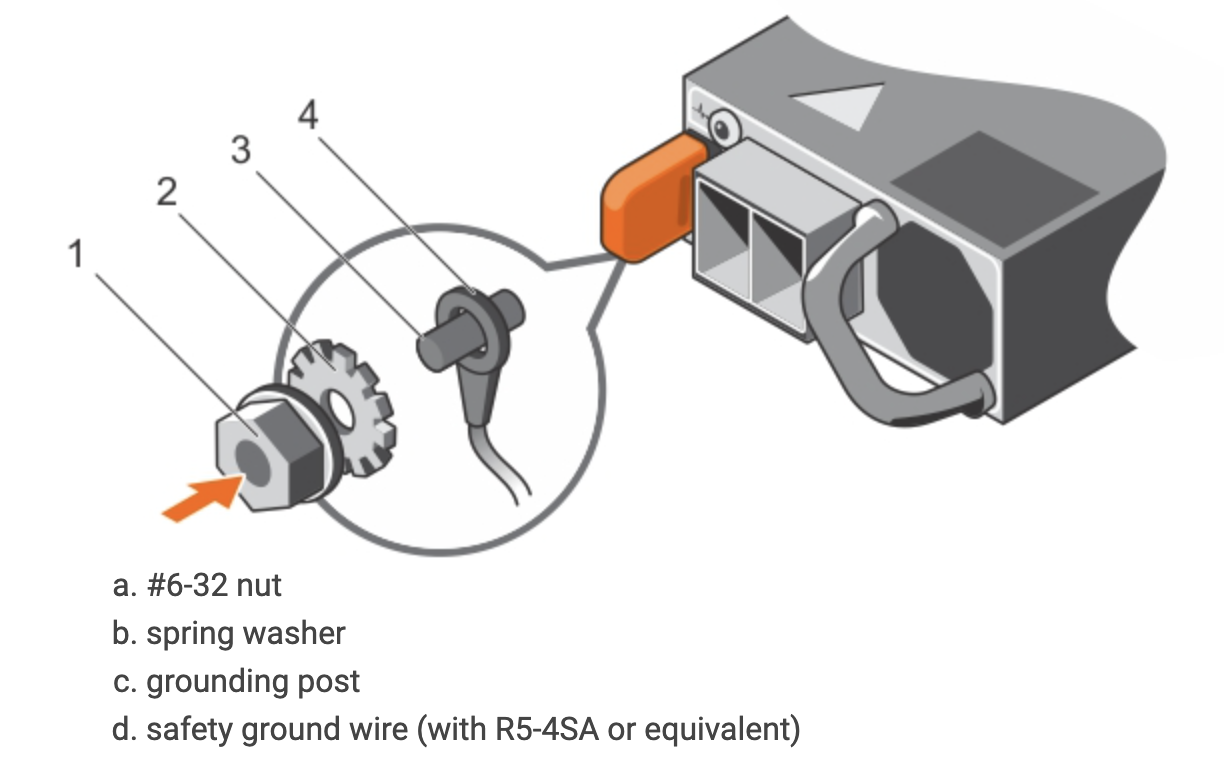

6-32 Grounding Screw
참고
[1] Wiring instructions for a DC power supply unit - https://www.dell.com/support/manuals/en-us/poweredge-r740/per740_ism_pub/wiring-instructions-for-a-dc-power-supply-unit?guid=guid-766a1e9a-80fc-43d0-a46b-3675917b7c4e&lang=en-us
[2] Assembling DC input power wires - https://www.dell.com/support/manuals/en-us/poweredge-r740/per740_ism_pub/assembling-dc-input-power-wires?guid=guid-ffe6eb72-6e73-4ac0-8777-c706f4cdc125&lang=en-us
[3] Assembling and connecting safety ground wire - https://www.dell.com/support/manuals/en-us/poweredge-r740/per740_ism_pub/assembling-and-connecting-safety-ground-wire?guid=guid-88737e6f-1002-484d-b08a-f0432411ec2c&lang=en-us
